Description

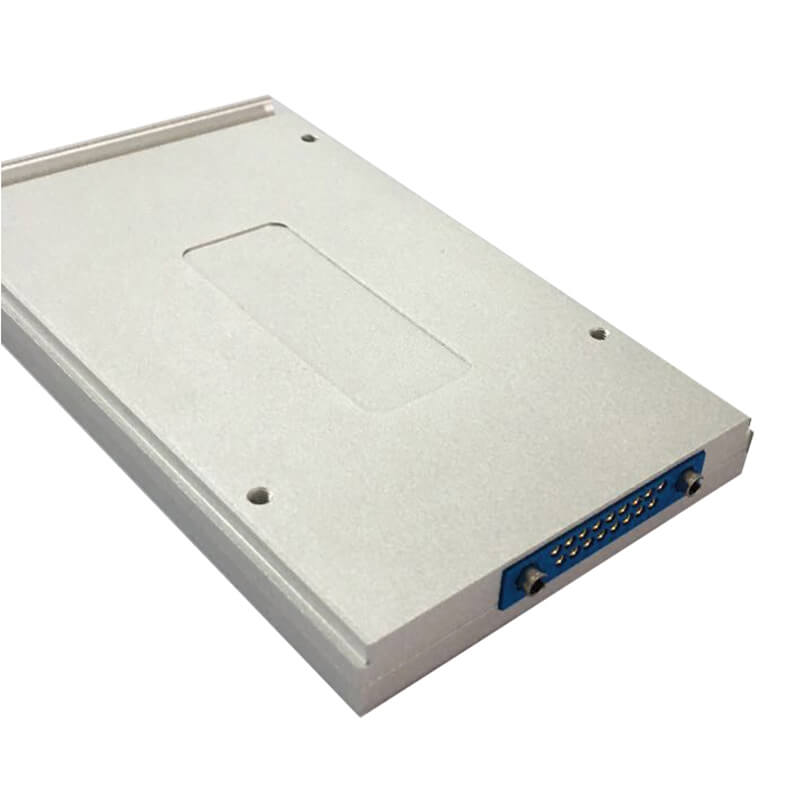

Mainkco Eitan series is customized 2.5-inch SLC SATA Solid State Disk with high reliability Smiths Connectors KA SERIES connectors. It carries 256MB DDR which brings higher performance. The Eitan SSDs adapt industrial controller with advanced flash-management algorithm that guarantee the data reliability and enhance the reliability and durability of SSD. The Eitan SSDs with ruggedized SATA connector are designed for harsh environment and rugged storage applications within the commercial aerospace, defense and industrial market segments.
Main features:
● Available in 2.5-inch Connector Rugged SATA,
● Smiths Connectors Rugged Connector MIL-DTL-55302 Compliant
● Capacity: 32, 64, 128, 256, 512, 640GB
● Uses Micron SLC/MLC NAND flash
● Read/Write Sustained Speed is 470/470 MBps
● Read/Write IOPS is 55000/60000
● Compatibility
-Intel Matrix Storage Manager
-Compatible with SATA-I(1.5Gbps), SATA-II(3.0Gbps) SATA-III(6.0Gbps) in the future.
-Support Smart technology
-Support NCQ
-Support Windows Trim command
● Smiths Connectors KA SERIES
– The contact area extends 360 degrees around the pin and is uniform over its entire
length.The 3-dimensional symmetry of the Hypertac contact design guarantees
electrical continuity in all circumstances
– long contact life Contacts perform up to 100,000 insertion extraction cycles with
minimal degradation in performance.
– The lower contact resistance of the Hypertac contact reduces heat build-up; therefore,
Hypertac contacts are able to handle far greater current in smaller contact assemblies
without the detrimental effects of high temperature.
● Power Management
-5V SATA supply
-Support Hot Plug/Removal Function
● Power Consumption
-Active: 2W
-Idle/Sleep: 0.3W
● Applied Temperature
-Operating: -40℃ to +85℃
-Non-Operating: -55℃ to 95℃
● Reliability
-MTBF: 2,000,000 Hours
● Size:
-Length: 115mm
-Width: 72mm
-Height: 9.4mm
● Weight:
-95 grams
● Smiths Connectors Rugged Connector MIL-DTL-55302 Compliant
● Capacity: 32, 64, 128, 256, 512, 640GB
● Uses Micron SLC/MLC NAND flash
● Read/Write Sustained Speed is 470/470 MBps
● Read/Write IOPS is 55000/60000
● Compatibility
-Intel Matrix Storage Manager
-Compatible with SATA-I(1.5Gbps), SATA-II(3.0Gbps) SATA-III(6.0Gbps) in the future.
-Support Smart technology
-Support NCQ
-Support Windows Trim command
● Smiths Connectors KA SERIES
– The contact area extends 360 degrees around the pin and is uniform over its entire
length.The 3-dimensional symmetry of the Hypertac contact design guarantees
electrical continuity in all circumstances
– long contact life Contacts perform up to 100,000 insertion extraction cycles with
minimal degradation in performance.
– The lower contact resistance of the Hypertac contact reduces heat build-up; therefore,
Hypertac contacts are able to handle far greater current in smaller contact assemblies
without the detrimental effects of high temperature.
● Power Management
-5V SATA supply
-Support Hot Plug/Removal Function
● Power Consumption
-Active: 2W
-Idle/Sleep: 0.3W
● Applied Temperature
-Operating: -40℃ to +85℃
-Non-Operating: -55℃ to 95℃
● Reliability
-MTBF: 2,000,000 Hours
● Size:
-Length: 115mm
-Width: 72mm
-Height: 9.4mm
● Weight:
-95 grams
● Conformal coating
● Integral Power Fail Protection
● Smiths Connectors KA SERIES
