Description

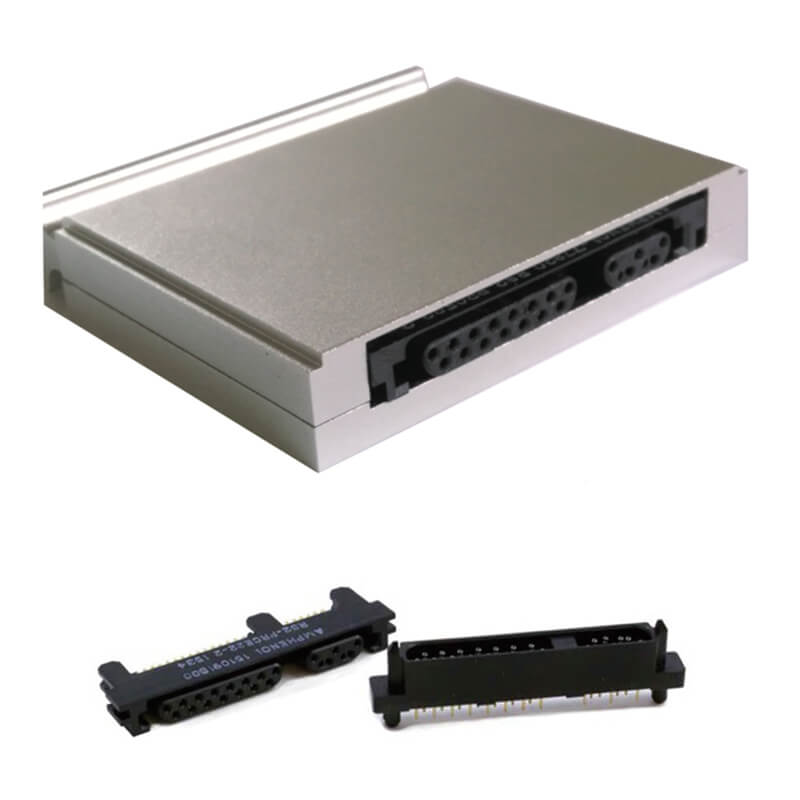

Mainkco Noam series is a customized SATA Solid State Disk with high reliability Amphenol R-SATA connectors and customized SSD housing. It carries 256MB DDR which brings higher performance. The Noam SSDs adapt industrial controller with advanced flash-management algorithm that guarantee the data reliability and enhance the reliability and durability of SSD. The Noam SSDs with ruggedized SATA connector are designed for harsh environment and rugged storage applications within the commercial aerospace, defense and industrial market segments.
Main features:
● Available in 1.8-inch Amphenol R-SATA Connector with special housing
● Capacity: 32, 64, 128GB
● Uses Micron SLC/MLC NAND flash
● Read/Write Sustained Speed is 470/470 MBps
● Read/Write IOPS is 55000/60000
● Compatibility
-Intel Matrix Storage Manager
-Compatible with SATA-I(1.5Gbps), SATA-II(3.0Gbps) SATA-III(6.0Gbps) in the future.
-Support Smart technology
-Support NCQ
-Support Windows Trim command
● Power Management
-5V SATA supply
-Support Hot Plug/Removal Function
● Power Consumption
-Active: 2W
-Idle/Sleep: 0.3W
● Applied Temperature
-Operating: -40℃ to +85℃
-Non-Operating: -55℃ to 95℃
● Reliability
-MTBF: 2,000,000 Hours
● Size:
-Length: 55mm
-Width: 72mm
-Height: 9.4mm
● Weight:
-55 grams
● Capacity: 32, 64, 128GB
● Uses Micron SLC/MLC NAND flash
● Read/Write Sustained Speed is 470/470 MBps
● Read/Write IOPS is 55000/60000
● Compatibility
-Intel Matrix Storage Manager
-Compatible with SATA-I(1.5Gbps), SATA-II(3.0Gbps) SATA-III(6.0Gbps) in the future.
-Support Smart technology
-Support NCQ
-Support Windows Trim command
● Power Management
-5V SATA supply
-Support Hot Plug/Removal Function
● Power Consumption
-Active: 2W
-Idle/Sleep: 0.3W
● Applied Temperature
-Operating: -40℃ to +85℃
-Non-Operating: -55℃ to 95℃
● Reliability
-MTBF: 2,000,000 Hours
● Size:
-Length: 55mm
-Width: 72mm
-Height: 9.4mm
● Weight:
-55 grams
● Conformal coating
● Integral Power Fail Protection
● Amphenol R-SATA Connectors
