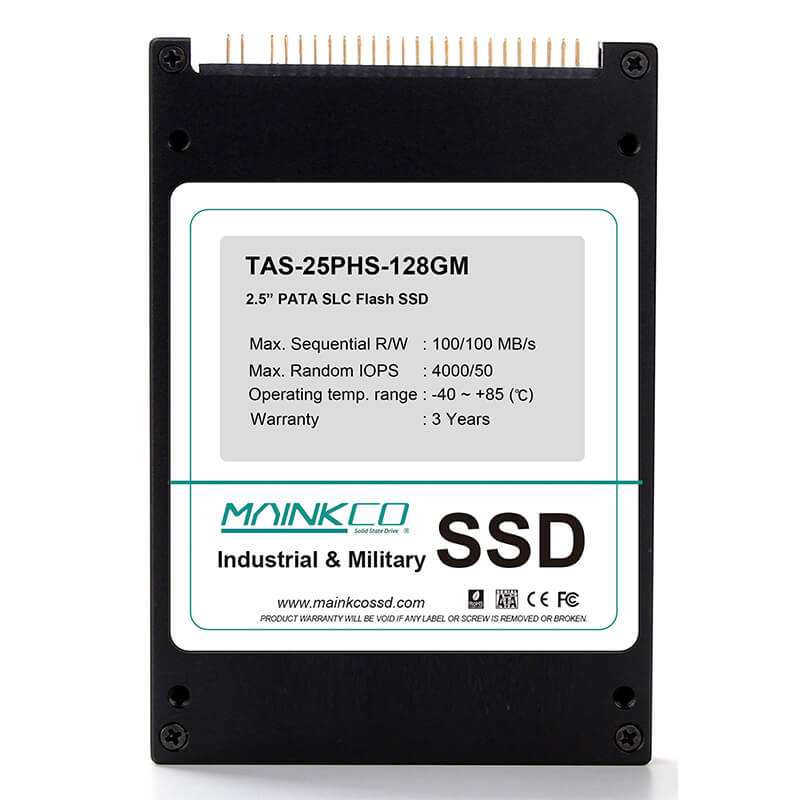

TAS-25PHS

TAS-25PHS

2.5″ PATA IDE SLC SSD with extreme stable performance

Rugged and conformal coating;
Military Secure Erase (Optional);
Industrial grade SLC Nand Flash;
Slow, but extreme stable R/W performance.

Description

Mainkco TAS-25PHS Series SSD is 2.5-inch PATA SLC NAND Solid-state-drive, which adapts Hyperstone A2 controller. The SSD provide really long-term stability and reliability, besides it supports power-loss protection based on the unique technology of “Twin Concept”. The TAS-25PHS owns excellent motherboard compatibility and runs stably in different OS, which let it widely to apply in industrial and embedded field.

Main features:

● Available in 2.5 inch PATA Form Factor

● Capacity: 8, 16, 32, 64, 128GB

● Uses Micron SLC (Single Level Cell) NAND flash

● Read/Write Sustained Speed is 100/100MBps

● Read/Write IOPS is 4000/50

● Compliance

-CE Certificate

-FCC Certificate

-ROHS

● Power Management

-5V SATA supply

-Support Hot Plug/Removal Function

● Power Consumption

-Active: 2W

-Idle/Sleep: 0.3W

● Applied Temperature

-Operating: 0℃ to +70℃ (Commercial Grade)
-Operating: -40℃ to +85℃ (Industrial Grade)

-Non-Operating: -55℃ to 95℃

● Reliability

-MTBF: 2,000,000 Hours

● Size:

-Length: 100mm

-Width: 70mm

-Height: 7.5mm

● Weight:

-80 grams

● Conformal coating

● Power Fail Protection

● Warranty time: 3 Years

Basic Specification:

Form factor	2.5” PATA
Capacity	8, 16, 32, 64, 128GB
Flash type	Micron SLC (single level cell) NAND Flash
Sustained R/W	8GB: 60/50 MB/s
	16GB: 65/55 MB/s
	32GB: 100/70 MB/s
	64GB: 100/80 MB/s
	128GB: 100/100 MB/s
Random IOPS	8GB: 3000/30
	16GB: 4000/50
	32GB: 4000/50
	64GB: 4000/50
	128GB: 4000/50
Power Management	5V SATA supply
Power Management	Support Hot Plug/Removal Function
Power Consumption	Active: 2W
Power Consumption	Idle/Sleep: 0.3W
Reliability	MBTF: 2 000 000 hours
Shock Resistance	1500G peak, 0.5ms, Half sine
Vibration resistance	20G peak, 20Hz to 2000Hz, Sine
Applied Temperature	Commercial grade: 0 ~ + 70℃
	Industrial grade: -40 ~ +85℃
	Storage temperature: -55 ~ +95C℃
Dimension	100mm x 70mm x 7.5mm (L x W x H)
Weight	80 g
Warranty	3 Years
Special features	Conformal coating
Special features	Power Fail Protection
Certificate	CE/FCC/ROHS

Ordering information:

Part no.	Description
TAS-25PHS-XC	2.5” PATA SSD, SLC NAND, Hyperstone A2 controller, 8GB/16GB/32GB/64GB/128GB, 0 ~ +70℃
TAS-25PHS-XM	2.5” PATA SSD, SLC NAND, Hyperstone A2 controller, 8GB/16GB/32GB/64GB/128GB, -40 ~ +85℃

X (different capacity): 8G/16G/32G/64G/128G
