Description

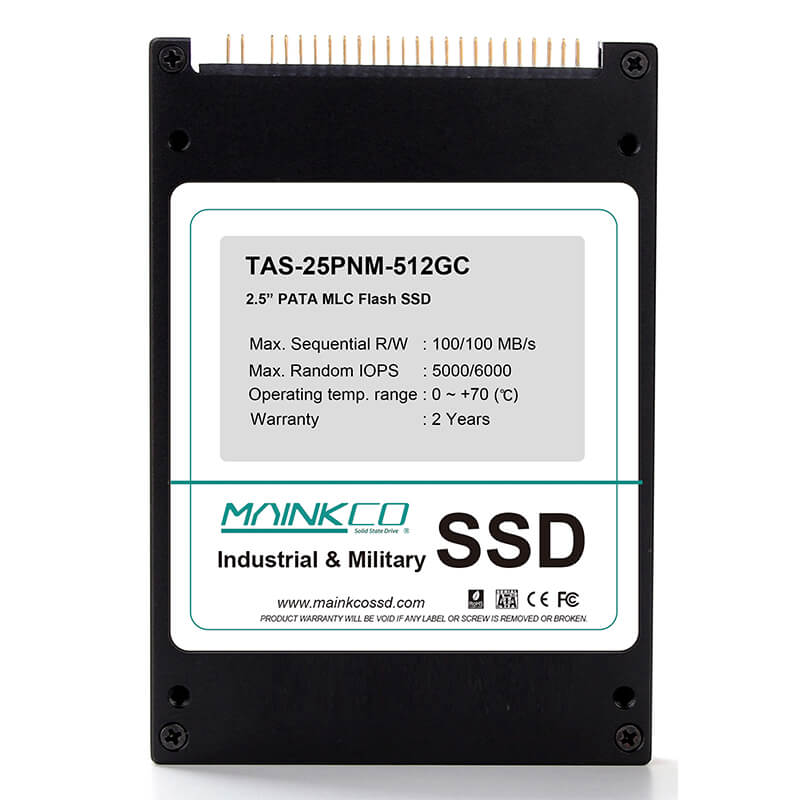

Mainkco TAS-25PNM Series SSD is 2.5-inch PATA MLC NAND Solid-state-drive (SSD), which adapts Novachips NVS3600A industrial controller. The SSD provide really long-term stability and reliability. Besides it supports integral power-loss protection based on the unique technology of ultra-big 3F capacitors. The TAS-25PNM has great performance, which is suitable for all kind of industrial and embedded applications. It can support fast secure erase function, and have a long-term supply.
Main features:
● Available in 2.5” PATA Form Factor
● Capacity: 32, 64, 128, 256, 512GB
● Uses Micron MLC (Multi Level Cell) NAND flash
● Read/Write Sustained Speed is 100/100MBps
● Read/Write IOPS is 5000/6000
● Compliance
-CE Certificate
-FCC Certificate
-ROHS
● Power Management
-5V SATA supply
-Support Hot Plug/Removal Function
● Power Consumption
-Active: 3.5W
-Idle/Sleep: 0.5W
● Applied Temperature
-Operating: 0℃ to +70℃ (Commercial grade)
-Operating: -40℃ to +85℃ (Industrial grade)
-Non-Operating: -55℃ to 95℃
● Reliability
-MTBF: 2,000,000 Hours
● Size:
-Length: 100mm
-Width: 70mm
-Height: 9.4mm
● Weight:
-85 grams
● Conformal coating
● Integral Power Fail Protection
● Fast secure erase protocol support
● Warranty time: 2 Years
