Description

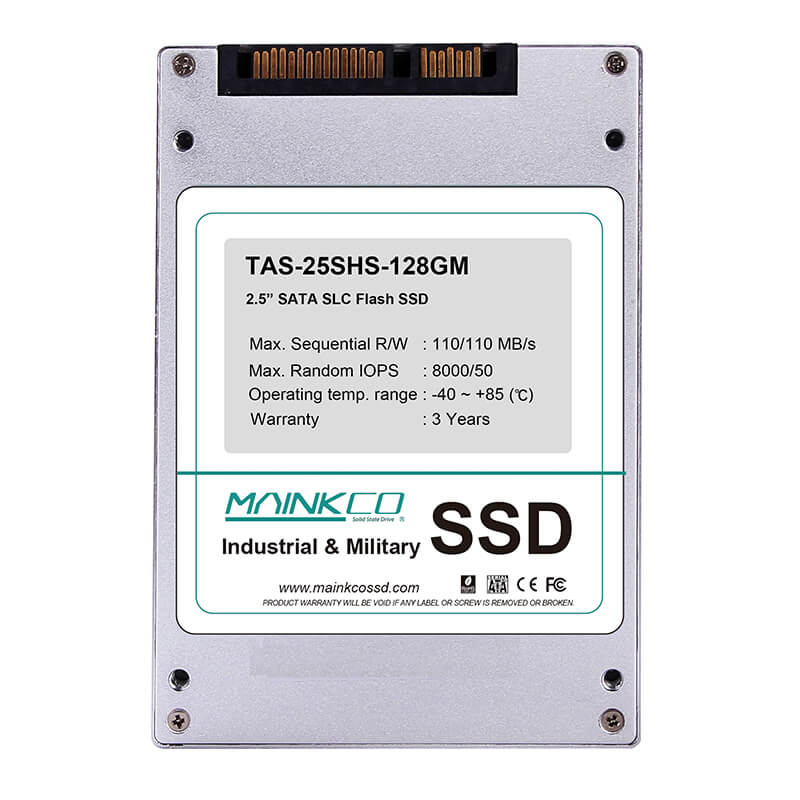

Mainkco TAS-25SHS Series SSD is 2.5-inch SATA SLC NAND Solid-state-drive, which adapts Hyperstone A2 controller. The SSD provide really long-term stability and reliability. It supports power-loss protection based on the unique technology of ‘Twin Concept’. The TAS-25SHS owns excellent motherboard compatibility and runs stably in different OS, which let it widely apply in industrial and embedded field.
Main features:
● Available in 2.5 inch SATA Form Factor
● Capacity: 8, 16, 32, 64, 128GB
● Uses Micron SLC (Single Level Cell) NAND flash
● Read/Write Sustained Speed is 110/110MBps
● Read/Write IOPS is 8000/50
● Support RAID Function
● Compatibility
-Intel Matrix Storage Manager
-Compatible with SATA-I(1.5Gbps), SATA-II(3.0Gbps) and SATA-III(6.0Gbps)
-Support Smart technology
-Support NCQ
-Support Windows Trim command
● Compliance
-CE Certificate
-FCC Certificate
-ROHS
● Power Management
-5V SATA supply
-Support Hot Plug/Removal Function
● Power Consumption
-Active: 2W
-Idle/Sleep: 0.2W
● Applied Temperature
-Operating: 0℃ to +70℃ (Commercial Grade)
-Operating: -40℃ to +85℃ (Industrial Grade)
-Non-Operating: -55℃ to 95℃
● Reliability
-MTBF: 2,000,000 Hours
● Size:
-Length: 100mm
-Width: 70mm
-Height: 9.4mm
● Weight:
-85 grams
● Conformal coating
● Power Fail Protection
● Warranty time: 3 Years
