Description

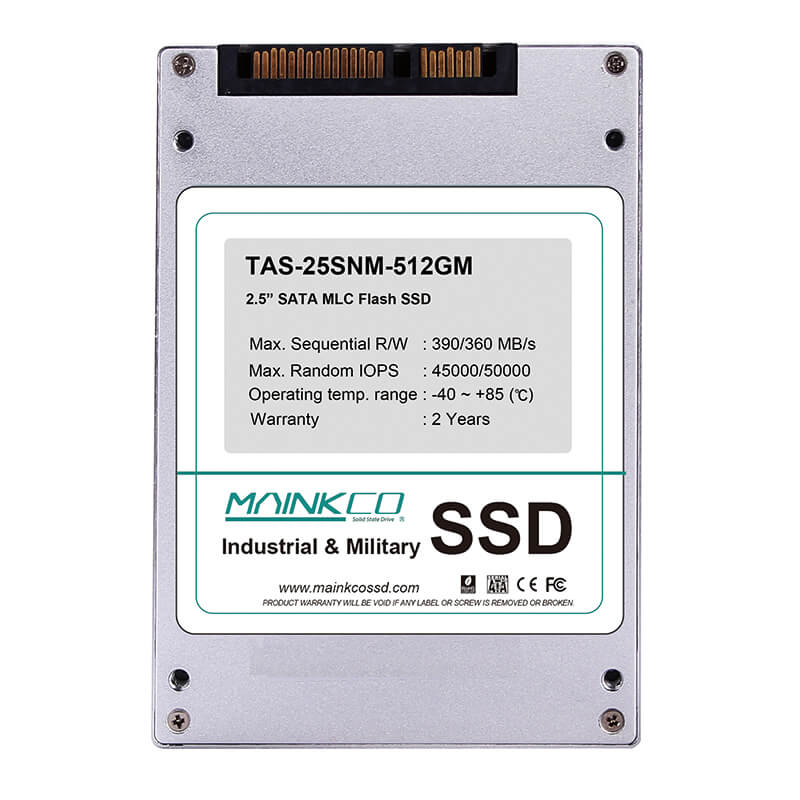

Mainkco TAS-25SNM series is 2.5-inch SATA-III Solid State Disk with MLC NAND Flash. It carries 256MB DDR which brings higher performance. The TAS-25SNM series SSDs adapt Novachip industrial controller with advanced flash-management algorithm that guarantee the data reliability and enhance the reliability and durability of SSD. The TAS-25SNM supports integral power fail protection feature for industrial and military applications. It is very suitable for high-definition embedded system, video devices, and server and so on.
Main features:
● Available in 2.5 inch SATA-III Form Factor
● Capacity: 32, 64, 128, 256, 512, 640GB
● Uses Micron MLC (Multi-Level Cell) NAND flash
● Read/Write Sustained Speed is 450/430MBps
● Read/Write IOPS is 50000/60000
● Compatibility
-Intel Matrix Storage Manager
-Compatible with SATA-I(1.5Gbps), SATA-II(3.0Gbps) and SATA-III(6.0Gbps)
-Support Smart technology
-Support NCQ
-Support Windows Trim command
● Compliance
-CE Certificate
-FCC Certificate
-ROHS
● Power Management
-5V SATA supply
-Support Hot Plug/Removal Function
● Power Consumption
-Active: 2W
-Idle/Sleep: 0.3W
● Applied Temperature
-Operating: 0℃ to +70℃ (Commercial Grade)
-Operating: -40℃ to +85℃ (Industrial grade)
-Non-Operating: -55℃ to 95℃
● Reliability
-MTBF: 2,000,000 Hours
● Size:
-Length: 100mm
-Width: 70mm
-Height: 9.4mm
● Weight:
-85 grams
● Conformal coating
● Integral Power Fail Protection
● Optional Secure Erase function
